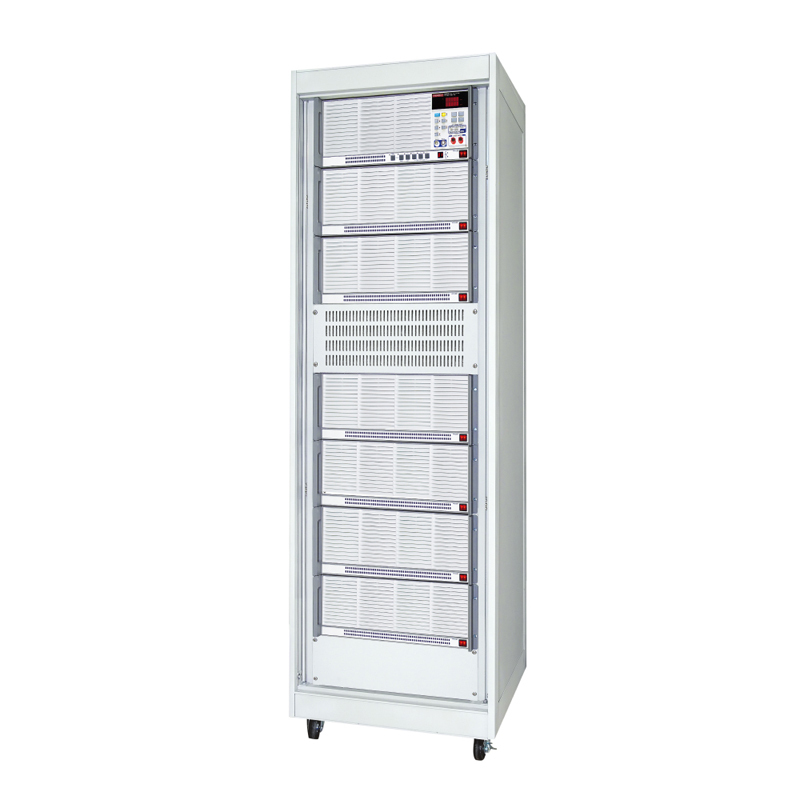

32616A AC & DC Electronic Load GPIB/RS232 300V,126A,12600VA (Master * 1, Slave * 6)

Description

l The 3260A Series is a 300V High power AC and DC Load in one unit, it provides an ideal testing solution for UPS, AVR, D/A inverter, especially for step or square waveform UUT

l Each High power Series AC&DC Load has it own control and display panel, and with 5 states Recall / Store memory which provides load set-up more efficiently

l Adjustable power factor setting (PF, Range: 1, 0.85 ~ -0.85) extends the simulation of test environment

l Built-in GO/NG meter check function offers brief test result diagnosis for production, QC test throughput

Features

l Voltage, Current, Watt and VA vaule display.

l CC¡BLinear CC¡BCR, and Crest Factor mode.

l GPIB/RS232 Interface and 5 states Recall/Store Memory.

l Power factor (PF) adjustable : 1, 0.85 ~ -0.85.

l Threshold Upper/Lower limit capability.

l Protections against V, I, W, and ¢J.

l Dual 4 1/2 Meter Display for Voltage, Current, Watt and VA.

l Suitable for Sine, Square, Step wave.

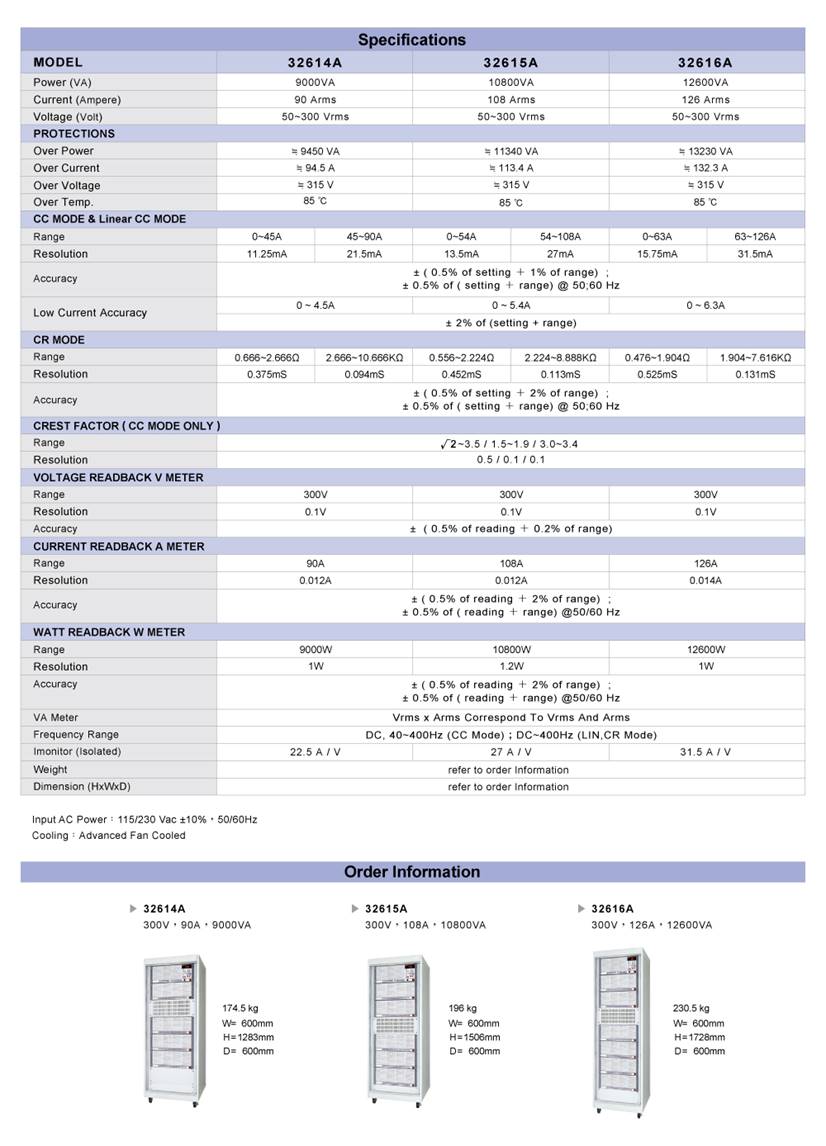

Specifications
